The Magnetron Sputter Coater has emerged as a pivotal tool in the field of thin-film deposition, facilitating advancements across various scientific and industrial applications. This technique has revolutionized the way materials are deposited at the atomic level, allowing for precise control over film thickness, composition, and microstructure. The development and optimization of magnetron sputtering systems have significant implications for the semiconductor industry, optical coatings, and the fabrication of advanced materials.
Understanding the underlying principles and technological nuances of magnetron sputtering is essential for researchers aiming to leverage this technology for innovative applications. The ability to tailor thin films with specific properties opens avenues for the development of next-generation devices and materials. This article delves into the operational mechanisms, material considerations, and practical applications of magnetron sputter coating, providing a comprehensive analysis for both novice and experienced researchers.
Magnetron sputtering is a physical vapor deposition (PVD) technique that involves ejecting material from a target source and depositing it onto a substrate to form a thin film. The process utilizes a combination of electric and magnetic fields to confine plasma close to the surface of the target, enhancing the sputtering efficiency. A high-voltage electric field ionizes a sputtering gas, typically argon, creating a plasma. The ions from the plasma are accelerated towards the target material, causing atoms to be ejected due to momentum transfer.
The incorporation of magnetic fields in magnetron sputtering serves to trap electrons near the target surface, increasing the ionization rate of the sputtering gas and thus enhancing the deposition rate. This method offers superior control over film properties compared to traditional sputtering techniques, making it highly suitable for applications requiring precise film characteristics.
In a Magnetron Sputter Coater, the target material is bombarded by high-energy ions generated in the plasma. The magnetic field, typically created by permanent magnets, confines the electrons to spiral paths near the target surface. This confinement increases the probability of ionizing collisions, maintaining a dense plasma and enhancing sputtering efficiency. The ejected atoms then traverse the vacuum chamber and condense onto the substrate, forming a thin film with properties influenced by process parameters such as pressure, power, and substrate temperature.
Magnetron sputtering can be categorized based on the power supply used:
Direct Current (DC) Magnetron Sputtering: Suitable for conductive targets, where a constant DC voltage is applied.
Radio Frequency (RF) Magnetron Sputtering: Used for insulating or non-conductive targets by applying an alternating RF voltage.
Pulsed DC Magnetron Sputtering: Combines the benefits of DC and RF sputtering, allowing for deposition of certain insulating materials.
Selecting appropriate materials for both the target and substrate is critical in achieving desired film properties. The sputtering yield, which depends on the target material's atomic weight and binding energy, influences the deposition rate and film composition. Additionally, the compatibility of the target material with the sputtering system must be considered to prevent contamination and equipment degradation.
Common target materials include metals such as aluminum, copper, and titanium, as well as compounds like oxides and nitrides. For example, sputtering targets composed of Aluminum Oxide (Al2O3) and Titanium Dioxide (TiO2) are extensively used in optical coatings due to their refractive properties. The purity and microstructure of the target material significantly affect the quality of the deposited film.
The choice of substrate material is equally important and is often dictated by the application. Silicon wafers are prevalent in semiconductor applications, whereas glass substrates are common in optical coatings. The substrate's surface morphology, thermal expansion coefficient, and chemical compatibility with the deposited film must be carefully considered to ensure adhesion and film integrity.
Magnetron sputtering involves several controllable parameters that influence film properties:
The pressure within the sputtering chamber affects the mean free path of the sputtered atoms and the plasma characteristics. Lower pressures result in higher energy atoms reaching the substrate, which can enhance film density and adhesion. Conversely, higher pressures can lead to increased scattering and a more uniform film over larger substrate areas.
Applying higher power increases the ionization rate in the plasma, leading to a higher sputtering rate. However, excessive power can cause target overheating and damage. Optimizing power density is crucial for achieving the desired deposition rate while maintaining target and substrate integrity.
Heating the substrate during deposition can enhance adatom mobility, promoting better crystallinity and film densification. For certain materials, substrate heating is essential to achieve the required film phases or to activate surface diffusion processes that improve film continuity and morphology.
The versatility of magnetron sputtering makes it suitable for a wide range of applications:
In the semiconductor industry, magnetron sputtering is utilized to deposit conductive and insulating layers essential for device functionality. Thin films of metals like copper and aluminum are commonly deposited using this method for interconnects and contact layers. The precision of magnetron sputtering allows for the formation of films with controlled thickness and minimal defects, which is critical for the performance of semiconductor devices.
Magnetron sputtering enables the deposition of optical coatings with high precision and uniformity. Thin films of metal oxides, such as Titanium Dioxide (TiO2) and Silicon Dioxide (SiO2), are used to create anti-reflective coatings, mirrors, and filters. The ability to finely control the refractive index and thickness of each layer allows for the customization of optical properties to meet specific application requirements.
The deposition of hard coatings, such as titanium nitride (TiN) and chromium nitride (CrN), enhances the surface properties of tools and components, providing wear resistance and extending their operational lifespan. Magnetron sputtering facilitates the deposition of these coatings with excellent adhesion and uniformity, even on complex geometries.
In photovoltaic applications, magnetron sputtering is employed to deposit thin-film materials like cadmium telluride (CdTe) and copper indium gallium selenide (CIGS). These materials are critical for the absorption of sunlight and conversion into electrical energy. Magnetron sputtering offers the scalability and control necessary for producing high-efficiency solar cells.
Recent developments in magnetron sputtering technology have focused on enhancing film quality, deposition rates, and process stability. Innovations include:
HiPIMS involves applying high-power pulses to the magnetron target, generating a highly ionized plasma. This technique improves film density and adhesion by increasing the energy of the depositing species. HiPIMS is particularly useful for depositing hard coatings and complex alloys.
By introducing reactive gases such as oxygen or nitrogen into the sputtering chamber, compounds like oxides and nitrides can be deposited from metallic targets. Reactive magnetron sputtering allows for the deposition of a wide range of materials without the need for compound targets, offering flexibility and cost advantages.
This configuration involves arranging multiple targets at specific angles to converge on a single substrate point. Confocal magnetron sputtering enables the co-deposition of different materials, facilitating the creation of alloys and compound films with precise compositional control.
Despite its advantages, magnetron sputtering presents certain challenges:
In reactive sputtering, the formation of compound layers on the target surface can reduce sputtering efficiency, a phenomenon known as target poisoning. Managing this requires careful control of reactive gas flow and monitoring of the deposition process.
Achieving film uniformity over large substrates can be challenging due to variations in plasma density and target erosion. Equipment design enhancements, such as rotating substrates and moving magnetrons, are employed to mitigate these effects.
Depositing materials with vastly different sputtering yields or reactive behaviors can lead to compositional gradients and non-uniform films. Co-sputtering from multiple targets and advanced process control systems are utilized to address these issues.
Implementing magnetron sputtering in a research setting requires attention to equipment selection, process development, and safety:

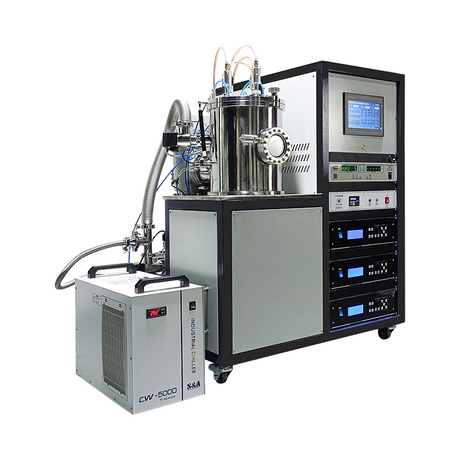

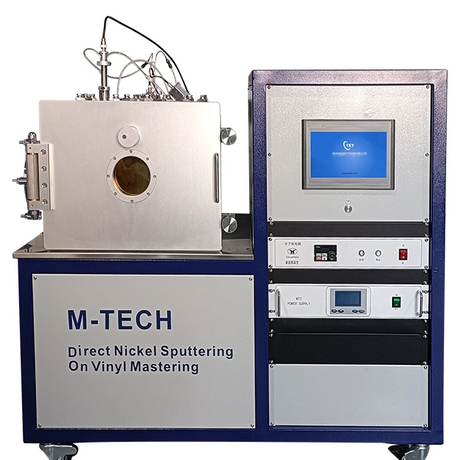

Choosing the appropriate Magnetron Sputter Coater involves considering factors such as the number of targets, chamber size, power supplies, and substrate handling capabilities. Systems with modular designs offer flexibility for various research needs.
Developing reliable sputtering processes necessitates systematic experimentation to understand the effects of parameters on film properties. Utilizing diagnostic tools like in-situ monitoring of film thickness and composition enhances process control.
Operating vacuum equipment and handling high voltages require adherence to strict safety protocols. Proper training and maintenance of the sputtering system are essential to prevent accidents and equipment damage.
Magnetron sputtering stands as a cornerstone technique in thin-film deposition, offering unparalleled control over material properties and film characteristics. Its versatility and adaptability make it an indispensable tool in advancing technologies across electronics, optics, energy, and materials science. Researchers and industry professionals continue to explore and expand its capabilities, pushing the boundaries of what can be achieved with thin-film materials. By understanding the complexities and opportunities within magnetron sputtering, innovators can develop cutting-edge solutions that meet the evolving demands of modern applications.
